Technology from korea,made in China
| AF 注塑机参数对照表 | 3378/400 | ||||
| 技术参数 | Description | 单 位 | AF400 | ||
| Injection unit | 射胶系统 | Unit | A | B | C |
| 理论注射容积 | Shot Volume | cm3 | 1767 | 2011 | 2270 |
| 实际注射量（ps） | Shot Weight(ps) | g | 1626 | 1850 | 2088 |
| 实际注射量（ps） | Shot Weight(ps) | Oz(盅司) | 57 | 65.2 | 73.7 |
| 螺杆直径 | Screw Diameter | mm | 75 | 80 | 85 |
| 注射压力 | Injection Pressure | Mpa | 191 | 168 | 148 |
| 理论注射速率 | Injection Rate | g/sec | 281 | 320 | 361 |
| 螺杆长杆比 | Screw L/D Ratio | 23.4 | 22 | 20.7 | |
| 螺杆行程 | Screw Stroke | mm | 400 | ||
| 螺杆转速 | Screw Speed(stepless) | Rpm | 0～126 | ||
| CLAMPING UNIT 锁模系统 | |||||
| 锁模力 | Clamping Force | ton | 400 | ||
| 开模行程 | Opening Stroke | mm | 720 | ||

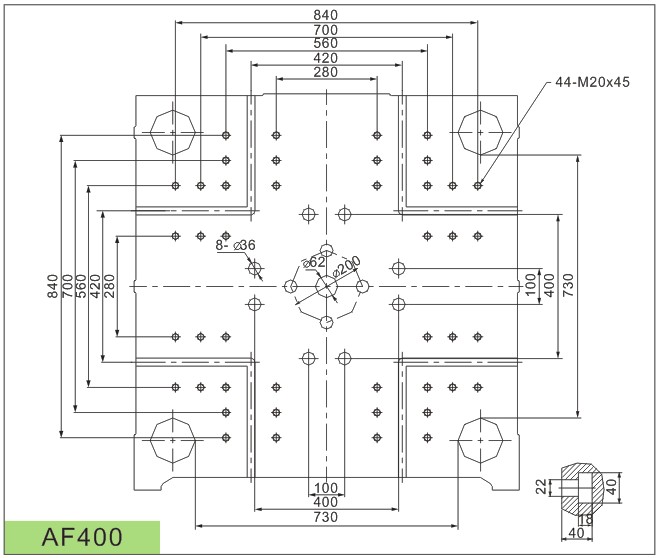

| 模板尺寸 | Platen Size | mmxmm | 1060x1060 | ||
| 拉杆间距 | Space Between Tie Bars | mmxmm | 730x730 | ||
| 模板最大距离 | Max. Daylight | mm | 1470 | ||
| 容模量（最薄-最厚） | Mold Thickness(min.-max.) | mm | 250-750 | ||
| 顶出行程 | Hydraulic Ejection Stroke | mm | 210 | ||
| 顶出力 | Hydraulic Ejection Force | ton | 11.3 | ||
| 顶针数 | Ejector Pin | Unit | 13 | ||
| POWER UNIT 电力/电热 | |||||
| 最大油泵压力 | Max Pump Pressure | Mpa | 16 | ||
| 油泵电机 | Pump Motor | Kw | 37 | ||
| 电热量 | Heating Capacity | Kw | 27 | ||
| 温度控制区数 | Number of Temp Control Zones | Unit | 6 | ||
| GENERAL UNIT 其他 | |||||
| 油箱容积 | Oil Tank Capacity | L | 700 | ||
| 外形尺寸（LxWxH） | Machine Dimensions | mxmxm | 7.7x1.7x2.3 | ||
| 理论机重 | Machine Weight | ton | 14.5 | ||
