Servo Controller Part
Technology from korea,made in China

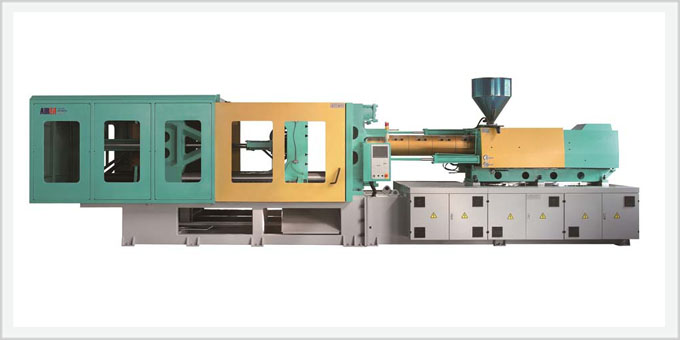

| AF 注塑机参数对照表 | 4638/600 | ||||
| 技术参数 | Description | 单 位 | AF600 | ||
| Injection unit | 射胶系统 | Unit | A | B | C |
| 理论注射容积 | Shot Volume | cm3 | 2554 | 2863 | 3190 |
| 实际注射量（ps） | Shot Weight(ps) | g | 2349 | 2634 | 2935 |
| 实际注射量（ps） | Shot Weight(ps) | Oz(盅司) | 83 | 92.9 | 103.5 |
| 螺杆直径 | Screw Diameter | mm | 85 | 90 | 96 |
| 注射压力 | Injection Pressure | Mpa | 182 | 162 | 146 |
| 理论注射速率 | Injection Rate | g/sec | 437 | 490 | 546 |
| 螺杆长杆比 | Screw L/D Ratio | 23.2 | 22 | 20.7 | |
| 螺杆行程 | Screw Stroke | mm | 450 | ||
| 螺杆转速 | Screw Speed(stepless) | Rpm | 0～115 | ||
| CLAMPING UNIT 锁模系统 | |||||
| 锁模力 | Clamping Force | ton | 600 | ||
| 开模行程 | Opening Stroke | mm | 850 | ||

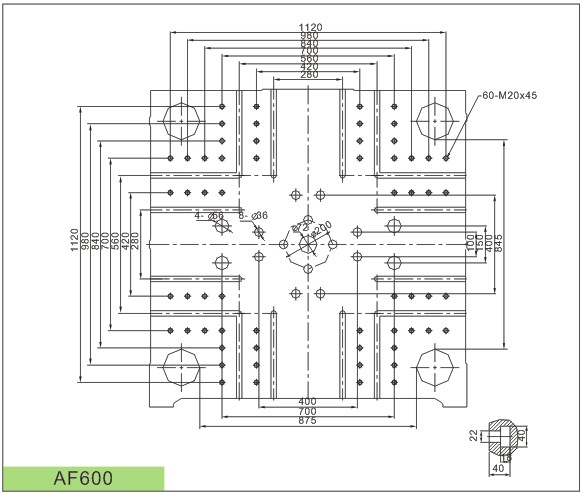

| 模板尺寸 | Platen Size | mmxmm | 1270x1240 | ||
| 拉杆间距 | Space Between Tie Bars | mmxmm | 875x845 | ||
| 模板最大距离 | Max. Daylight | mm | 1730 | ||
| 容模量（最薄-最厚） | Mold Thickness(min.-max.) | mm | 350-880 | ||
| 顶出行程 | Hydraulic Ejection Stroke | mm | 260 | ||
| 顶出力 | Hydraulic Ejection Force | ton | 16.6 | ||
| 顶针数 | Ejector Pin | Unit | 17 | ||
| POWER UNIT 电力/电热 | |||||
| 最大油泵压力 | Max Pump Pressure | Mpa | 16 | ||
| 油泵电机 | Pump Motor | Kw | 22+37 | ||
| 电热量 | Heating Capacity | Kw | 39 | ||
| 温度控制区数 | Number of Temp Control Zones | Unit | 6 | ||
| GENERAL UNIT 其他 | |||||
| 油箱容积 | Oil Tank Capacity | L | 900 | ||
| 外形尺寸（LxWxH） | Machine Dimensions | mxmxm | 9.1x2.0x2.6 | ||
| 理论机重 | Machine Weight | ton | 24 | ||
